Camry Engines 1984-2014
#1
Camry Engines 1984-2014 engine repair PDFs as at Jan 2016
starting research from wiki camry lists https://en.wikipedia.org/wiki/Toyota_Camry then build on that
found this site good for engine designation for any year camry
Select Your Model
Engines ALL For Four Cyl and V6 covering 1984- 2015
Camry engine repair manuals in pfd can be found FREE on the internet
additions from members in this topic or new data welcome
V10 (1982–1986)
1.8 L I4 gasoline (1S-L,-LU)
1.8 L I4 gasoline (1S-iLU)
2.0 L I4 gasoline (2S-EL,-ELC,-ELU)
2.0 L I4 gasoline (3S-GELU)
1.8 L I4 diesel turbo (1C-TL,-TLC)
2.0 L I4 diesel turbo (2C-TL,-TLC)
V20 (1986–1990)
1.8 L I4 gasoline (1S-i)
1.8 L I4 gasoline (4S-Fi)
2.0 L I4 gasoline (3S-FC)
2.0 L I4 gasoline (3S-FE)
2.0 L I4 gasoline (3S-GE)
2.0 L V6 gasoline (1VZ-FE)
2.5 L V6 gasoline (2VZ-FE)
2.0 L I4 diesel turbo (2C-T)
Wide Body Camry
XV10 (1991–1996) 5S-FE / V6 3VZ-FE /V6 1MZ-FE
XV20 (1996–2001)5S-FE 2.2 L I4/V6 1MZ-FE
XV30 (2001–2006) 2AZ-FE I4 1 1MZ-FE 3MZ-FE V6
XV40 (2006–2011) 2AZ-FE I4 2GR-FE V6
XV50 (2011–present.) 2ARFE L 4 2GRFE V 6
Hybrid ( 2AZ-FXE four-cylinder)...
Toyota Hybrid presentation 214 pages
https://autoteacher.net/uploads/Toyo...esentation.pdf
Diesel.. see Post 2
the engine repair PDFs found free online so far
Cant find any Camry 1, 2 or 4 S engine pdfs
see attachment for a picture of a 1 S
3S-GE 495 pages Pdf wiki says this type was fitted into V10 (1982–1986)
http://www.mr2australia.com/st202_rm396e.pdf
(4A–FE) (3S–GTE) (5S–FE) 311 pages pdf (random find )
http://www.manualesdemecanica.com/im...8c81d4f67f.pdf
V10 (1982–1986) ...V20 (1986–1990)
3S-FE and 2VZ-FE 175 pages ..... engine mechanical section
http://www.playnice.org/pdf/Toyota%2...Mechanical.pdf
Wide Body Camry

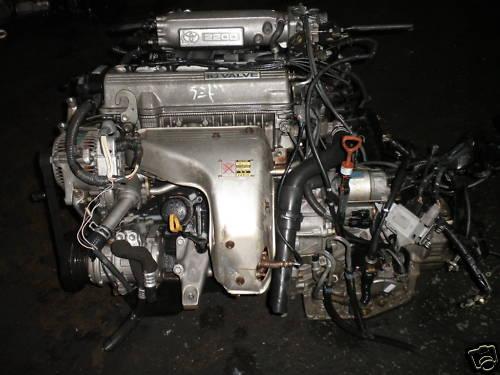

5S-FE 431 pages
http://www.turboninjas.com/camry/eg1.pdf
ENGINE MECHANICAL to page 144
EMISSION CONTROL SYSTEMS
MFI/SFI SYSTEM page 164
COOLING SYSTEM page 238
LUBRICATION SYSTEM page 268
DIAGNOSIS SYSTEM page 296
CIRCUIT INSPECTION page 336
1MZFE 599 pages pdf .... section
http://www.turboninjas.com/camry/eg2.pdf
ENGINE MECHANICAL to page 195
SFI SYSTEM page 217
COOLING SYSTEM page 313
LUBRICATION SYSTEM page 367
DIAGNOSIS SYSTEM page 399
2AZ-FE 85 pages pdf
http://www.shinny.co.uk/toyota/3MZ-F...Mechanical.pdf
2AZ-FE & 2AZ-FXE Throttle Body
http://alflash.com.ua/avtovideo/2/2a...lebody_tsb.pdf
3MZ-FE engine mechanical 143 pages pdf in total.see attachments . broken down to forums upload limits
3MZ-FE . 15 pages - PARTIAL ENGINE ASSY COMPONENTS (3MZ-FE)
http://highlanderclub.ru/files/manua...p/conponen.pdf
3MZ-FE 7 pages ..Timing belt
http://highlanderclub.ru/files/manua...1p/x040001.pdf
2GR-FE V6 used XV40 (2006–2011)
bonus find apart from the engine section a 1021 page pdf ... on this 2GR-FE engine and systems
http://mr2.bordeauxgroup.com/AVTO0566.pdf
ENGINE MECHANICAL – ENGINE UNIT ...up to page 156
ENGINE CONTROL SYSTEM – SFI SYSTEM page 157-638
ENGINE CONTROL SYSTEM – MASS AIR FLOW METER page 639
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY page 643
VVT SENSOR page 652
CRANKSHAFT POSITION SENSOR page 659
ENGINE COOLANT TEMPERATURE SENSOR page 665
THROTTLE BODY page 669
KNOCK SENSOR page 674
IG2 RELAY page 681
AIR FUEL RATIO SENSOR RELAY page 684
Electronic ACCELERATOR PEDAL page 688
FUEL PUMP page 738
the rest is all electronic information ending with or without the smart key
small pdfs are exploded views
engine assembly 13 page pdf
http://marclabranche.com/V6MR2/2GRFE...ine%20assy.pdf
engine assembly 11 page pdf (back up site )
http://share.qclt.com/%E4%B8%B0%E7%9...e/00800310.pdf
head gasket 6 page pdf
http://marclabranche.com/V6MR2/2GRFE...d%20gasket.pdf
found this site good for engine designation for any year camry
Select Your Model
Engines ALL For Four Cyl and V6 covering 1984- 2015
Camry engine repair manuals in pfd can be found FREE on the internet
additions from members in this topic or new data welcome
V10 (1982–1986)
1.8 L I4 gasoline (1S-L,-LU)
1.8 L I4 gasoline (1S-iLU)
2.0 L I4 gasoline (2S-EL,-ELC,-ELU)
2.0 L I4 gasoline (3S-GELU)
1.8 L I4 diesel turbo (1C-TL,-TLC)
2.0 L I4 diesel turbo (2C-TL,-TLC)
V20 (1986–1990)
1.8 L I4 gasoline (1S-i)
1.8 L I4 gasoline (4S-Fi)
2.0 L I4 gasoline (3S-FC)
2.0 L I4 gasoline (3S-FE)
2.0 L I4 gasoline (3S-GE)
2.0 L V6 gasoline (1VZ-FE)
2.5 L V6 gasoline (2VZ-FE)
2.0 L I4 diesel turbo (2C-T)
Wide Body Camry
XV10 (1991–1996) 5S-FE / V6 3VZ-FE /V6 1MZ-FE
XV20 (1996–2001)5S-FE 2.2 L I4/V6 1MZ-FE
XV30 (2001–2006) 2AZ-FE I4 1 1MZ-FE 3MZ-FE V6
XV40 (2006–2011) 2AZ-FE I4 2GR-FE V6
XV50 (2011–present.) 2ARFE L 4 2GRFE V 6
Hybrid ( 2AZ-FXE four-cylinder)...
Toyota Hybrid presentation 214 pages
https://autoteacher.net/uploads/Toyo...esentation.pdf
Diesel.. see Post 2
the engine repair PDFs found free online so far
Cant find any Camry 1, 2 or 4 S engine pdfs
see attachment for a picture of a 1 S
3S-GE 495 pages Pdf wiki says this type was fitted into V10 (1982–1986)
http://www.mr2australia.com/st202_rm396e.pdf
(4A–FE) (3S–GTE) (5S–FE) 311 pages pdf (random find )
http://www.manualesdemecanica.com/im...8c81d4f67f.pdf
V10 (1982–1986) ...V20 (1986–1990)
3S-FE and 2VZ-FE 175 pages ..... engine mechanical section
http://www.playnice.org/pdf/Toyota%2...Mechanical.pdf
Wide Body Camry
5S-FE 431 pages
http://www.turboninjas.com/camry/eg1.pdf
ENGINE MECHANICAL to page 144
EMISSION CONTROL SYSTEMS
MFI/SFI SYSTEM page 164
COOLING SYSTEM page 238
LUBRICATION SYSTEM page 268
DIAGNOSIS SYSTEM page 296
CIRCUIT INSPECTION page 336
1MZFE 599 pages pdf .... section
http://www.turboninjas.com/camry/eg2.pdf
ENGINE MECHANICAL to page 195
SFI SYSTEM page 217
COOLING SYSTEM page 313
LUBRICATION SYSTEM page 367
DIAGNOSIS SYSTEM page 399
2AZ-FE 85 pages pdf
http://www.shinny.co.uk/toyota/3MZ-F...Mechanical.pdf
2AZ-FE & 2AZ-FXE Throttle Body
http://alflash.com.ua/avtovideo/2/2a...lebody_tsb.pdf
3MZ-FE engine mechanical 143 pages pdf in total.see attachments . broken down to forums upload limits
3MZ-FE . 15 pages - PARTIAL ENGINE ASSY COMPONENTS (3MZ-FE)
http://highlanderclub.ru/files/manua...p/conponen.pdf
3MZ-FE 7 pages ..Timing belt
http://highlanderclub.ru/files/manua...1p/x040001.pdf
2GR-FE V6 used XV40 (2006–2011)
bonus find apart from the engine section a 1021 page pdf ... on this 2GR-FE engine and systems
http://mr2.bordeauxgroup.com/AVTO0566.pdf
ENGINE MECHANICAL – ENGINE UNIT ...up to page 156
ENGINE CONTROL SYSTEM – SFI SYSTEM page 157-638
ENGINE CONTROL SYSTEM – MASS AIR FLOW METER page 639
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY page 643
VVT SENSOR page 652
CRANKSHAFT POSITION SENSOR page 659
ENGINE COOLANT TEMPERATURE SENSOR page 665
THROTTLE BODY page 669
KNOCK SENSOR page 674
IG2 RELAY page 681
AIR FUEL RATIO SENSOR RELAY page 684
Electronic ACCELERATOR PEDAL page 688
FUEL PUMP page 738
the rest is all electronic information ending with or without the smart key
small pdfs are exploded views
engine assembly 13 page pdf
http://marclabranche.com/V6MR2/2GRFE...ine%20assy.pdf
engine assembly 11 page pdf (back up site )
http://share.qclt.com/%E4%B8%B0%E7%9...e/00800310.pdf
head gasket 6 page pdf
http://marclabranche.com/V6MR2/2GRFE...d%20gasket.pdf
Last edited by dirty hands; 01-17-2016 at 02:09 AM.
#2
Toyota Camry Turbo Diesel ....short production run ..... special edition
anyone see one for sale in america please post it up
from wiki
V10 (1982–1986)
1.8 L I4 diesel turbo (1C-TL,-TLC)
2.0 L I4 diesel turbo (2C-TL,-TLC)
V20 (1986–1990)
2.0 L I4 diesel turbo (2C-T)
in August 1988 a diesel version of the Vista hardtop made its debut, and the 1.8-liter gasoline engine was upgraded to the twin-cam 4S-Fi specification.[67][68] Special editions for the Camry comprised: Lumière S sedan (January 1989), Prominent X hardtop (May 1989), Lumière G sedan (June 1989), and XT Saloon Special sedan (January 1990).
source http://www.carfolio.com/
Toyota Camry Diesel manual gearbox
Toyota Camry 1800 Turbo Diesel XT specifications, information, data, photos 24508
Toyota Camry Diesel automatic gearbox
1986 Toyota Camry XT Saloon 2000 Turbo Diesel Automatic specifications, information, data, photos 312576
the diesel download sites I found for 1C and 2C were ZIP types and not safe to continue
closest I could find 172 pages .pdf 2L-T 3L
http://www.toyota4wd.dk/Teknik/J70/T...nual%202Lt.pdf
trying to find a running toyota camry turbo diesel
only example I could find of a running diesel
Toyota Diesel in a vista sedan running 27 seconds
anyone see one for sale in america please post it up
from wiki
V10 (1982–1986)
1.8 L I4 diesel turbo (1C-TL,-TLC)
2.0 L I4 diesel turbo (2C-TL,-TLC)
V20 (1986–1990)
2.0 L I4 diesel turbo (2C-T)
in August 1988 a diesel version of the Vista hardtop made its debut, and the 1.8-liter gasoline engine was upgraded to the twin-cam 4S-Fi specification.[67][68] Special editions for the Camry comprised: Lumière S sedan (January 1989), Prominent X hardtop (May 1989), Lumière G sedan (June 1989), and XT Saloon Special sedan (January 1990).
source http://www.carfolio.com/
Toyota Camry Diesel manual gearbox
Toyota Camry 1800 Turbo Diesel XT specifications, information, data, photos 24508
Toyota Camry Diesel automatic gearbox
1986 Toyota Camry XT Saloon 2000 Turbo Diesel Automatic specifications, information, data, photos 312576
the diesel download sites I found for 1C and 2C were ZIP types and not safe to continue
closest I could find 172 pages .pdf 2L-T 3L
http://www.toyota4wd.dk/Teknik/J70/T...nual%202Lt.pdf
trying to find a running toyota camry turbo diesel
only example I could find of a running diesel
Toyota Diesel in a vista sedan running 27 seconds
Last edited by dirty hands; 01-16-2016 at 04:10 AM.
#4
Non US camry s
Intersting question
they are just as hard to work on and have the same toyota problems
Cosmetic changes only on all models
The steering wheel pedals and instrument dash and console
is swapped to the other side
drivers seat is passengers seat
Intersting question
they are just as hard to work on and have the same toyota problems
Cosmetic changes only on all models
The steering wheel pedals and instrument dash and console
is swapped to the other side
drivers seat is passengers seat
Last edited by dirty hands; 03-26-2016 at 04:44 AM.
#5
grrrr some one asked an specific engine question
took me several pages of DIY ..to go find this write up
bookmarked on my puter
took me several pages of DIY ..to go find this write up
bookmarked on my puter
Last edited by dirty hands; 08-29-2016 at 05:35 AM.
