TOYO KEY OBDII program Toyota G chip H chip all key lost with CN900 MINI

Off Topic A place to boldly go off topic. just about anything goes.

TOYO KEY OBDII program Toyota G chip H chip all key lost with CN900 MINI

  #1
Old 12-05-2016, 08:27 PM
Junior Member
Thread Starter
Join Date: Nov 2016
Posts: 2
Default TOYO KEY OBDII program Toyota G chip H chip all key lost with CN900 MINI

TOYO KEY OBDII KEYPRO Bluetooth is a connector which support Toyota G chip, Toyota H chip all key lost write chip and program new key. It can work with CN900 MINI and ND900 MINI via Bluetooth to connect car!

TOYO KEY OBDII KEY PRO main unit:


TOYO KEY OBDIIKEY PRO functions list:
TOYO KEY OBDII plugs in car OBD2 port and connects with CN900 MINI/ ND900 MINI via Bluetooth. You operate on CN900 MINI/ ND900 MINI screen.
TOYO Key support Toyota G chip H chip all key lost:
1. TOYO-G (80bit) all key lost, write chips!
2. TOYO-8A (128bit) all key lost, write chips!
3. TOYO-smart card all key lost, write chips!
4. DAI-G (80BIT) all key lost, write chips!
5. NO need to take out instrument desk! (Avoid damaging the car system)

TOYO Key can program new key on:
Toyota ID72 (G) all key lost
Toyota 8A (H) all key lost
In the coming days, TOYO Key is able to program key on:
Toyota smart card all key lost
VW Audi 48 chip all key lost

How TOYO KEY OBDII with CN900 MINI do Toyota G chip H chip all key lost?
First you should activate and register TOYO KEY OBDII.
Then you can use TOYO KEY OBDII with CN900 MINI.

To activate TOYO KEY OBDII:
Step1. Update CN900 MINI software to newest V1.20.2.15. (If you fail to update at first time, please try until success!)

Step2. Start CN900 MINI device and choose “OBDII Comm.” function;

Choose “ID72 (G) IMMO reset”

Step3. Then it will show you serial number and ask you to input the activation code.

Please take a photo of this screen and send it to eobdtool.co.uk salesman. We engineers will calculate the activation code for you!

After you get the activation code, now you can input the code then activation and registration complete!
(Please note: one activation code can register only one CN900mini device, it cannot be used on other CN900mini devices, please operate according to this guide.)

To use TOYO KEY OBDII:
Set TOYO KEY OBDII program new key as example

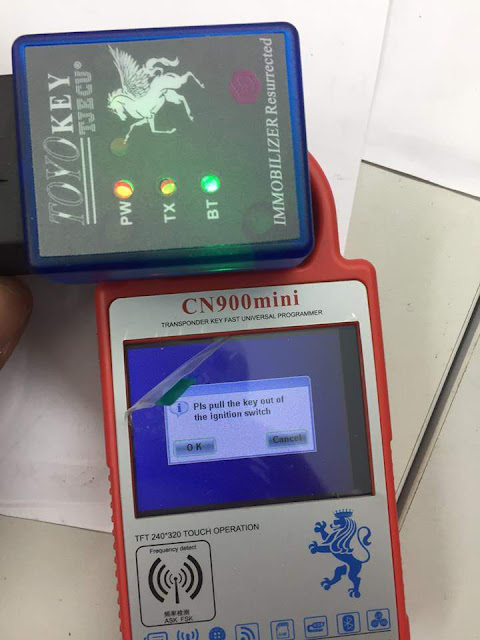

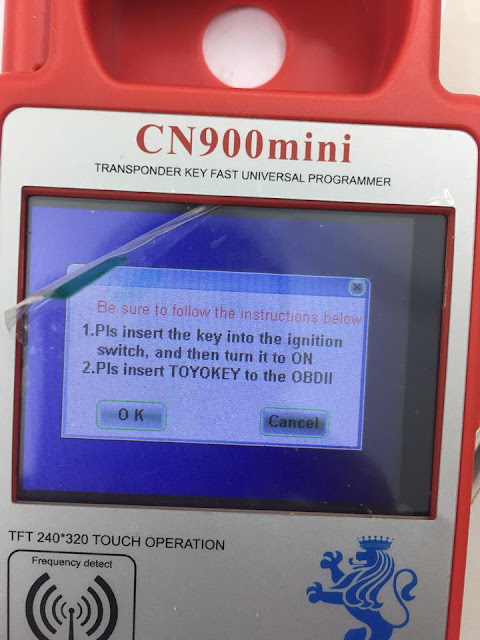

Step1. Insert the new key to turn on ignition then plug TOYO OBDII into the car OBD2 port.

Step2. Use the option 72G of CN900 MINI to connect then start to initialize data. The IMMO indictor will be on for a long time then follow the CN900Mini prompt to operate.
Step 3, It will prompt “Complete/ Success”, and then the IMMO indicator will be on for a long time again.
Step 4: Turn on and off ignition for 5 times quickly, IMMO indicator is off.
Done!

Two options recommended:
TOYO KEYOBDII+CN900 MINI
TOYO KEYOBDII+ND900 MINI

  #2
Old 12-07-2016, 02:04 AM
Junior Member
Join Date: Sep 2014
Posts: 13
Default

i am afraid you have post the wring info. I don't see the programming instruction. I can only see the activation guide.

Here i can find step-by-step video guide
CN900 Mini CN900 Transponder Key Programmer Plus TOYO Key OBD II OBD2 Key Pro
