Default 1995 Camry LE V6 / Repair Grommet For Floor Mat Hook Hole

Thought this could help someone out.

I wanted to repair my floor mat clip (broke) and floor carpet grommet for drivers side so carpet mat stays in place.



Parts -

Floor Mat clip - 08210-00820

Retainer for floor carpet hole - 58297-50020

The carpet mat has it own grommet and is steel and in good shape.

(Glad I bought as a combo kit. My old retainer for floor carpet hole was still intact, original, but was slightly smaller. This would not fit the floor mat clip setup or retainer. Widened the carpet hole with a drill)

Took me 10 minutes

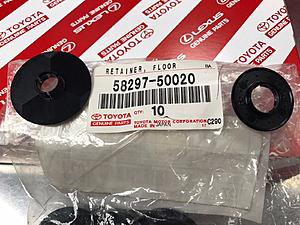

Floor Carpet retainer

The retainer for the floor carpet has two parts top and bottom that snap together in the hole. I removed trunk and gas lever next to seat to get under the carpet. Large disc goes on bottom and small disk on top. See pictures.

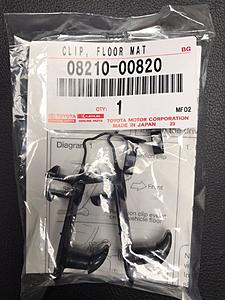

Floor Mat Hook Hole

This just pushes into the floor carpet grommet hole and a tab locks it in. See pictures.

Credits

Pictures and purchase from EBAY

Name of seller
toyota_scion_south

Ad
Toyota OEM Carpet Repair Grommet For Floor Mat Hook Hole 58297-50020 FREE HOOKS - Ad

Current Link

Toyota OEM Carpet Repair Grommet For Floor Mat Hook Hole 58297-50020 FREE HOOKS | eBay -
FREE HOOKS

Attached Thumbnails 1995 Camry LE V6 / Repair Grommet For Floor Mat Hook Hole-carpet-retainer-grommets.jpg   1995 Camry LE V6 / Repair Grommet For Floor Mat Hook Hole-clip-floor-mat.jpg
  #2
Old 09-28-2017, 06:58 PM
Super Moderator
Join Date: Jan 2008
Location: PTW
Posts: 11,678
Default

Great post, thanks!
